Miro 4-RAH-10 Roller Pipe Support

Miro 4-RAH-10 Roller Pipe Support

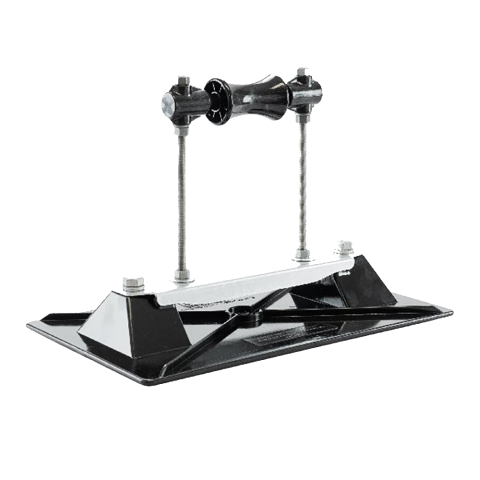

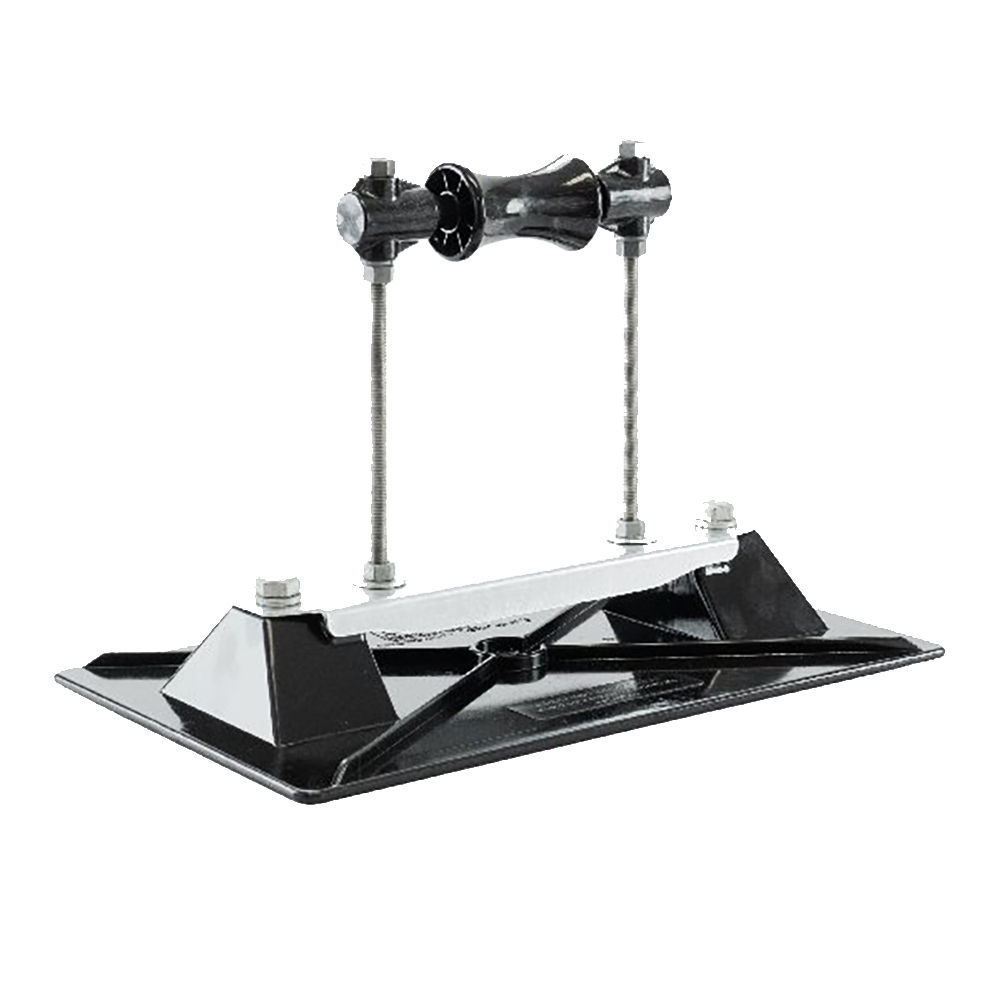

The Miro 4-RAH-10 Roller Pipe Support uses rollers and bearings to support roof-mounted gas pipes, electrical conduit, solar piping or other rooftop piping.  These supports are designed to handle thermal expansion and contraction of the pipes to prevent damage to you roofing membrane.  The pipe support and roller is made of a polycarbonate resin with the rollers being self-lubricating to avoid friction and wear.  All the threads and metal parts are made from stainless steel to avoid rust and guarantee it will last the life of the roof.  This pipe stand will accommodate up to 4″ inside diameter and 4.5″ outside diameter pipes and has a max pipe clearance of 9.5″.

Features

• Base Material – Polycarbonate
• Size – Deck base is 9″ by 15.25″ and cradle width is 4″
• Max Pipe Size – 4″ inside diameter and 4.5″ outside diameter
• Max Pipe Clearance – Maximum clearance height of 9.5″
• Max Load Weight – 335 lbs. per pipe stand
• Spacing – Miro recommends spacing to not exceed 10′ centers depending on weight load

Downloads

Specification and Drawing
