Miro 16-Base Strut-12 Strut Style Pipe Support

Miro 16-Base Strut-12 Strut Style Pipe Support

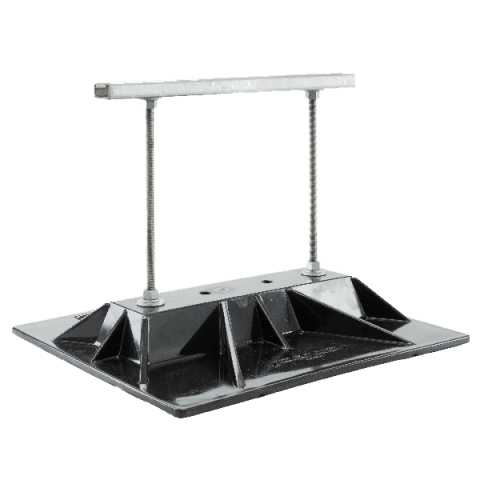

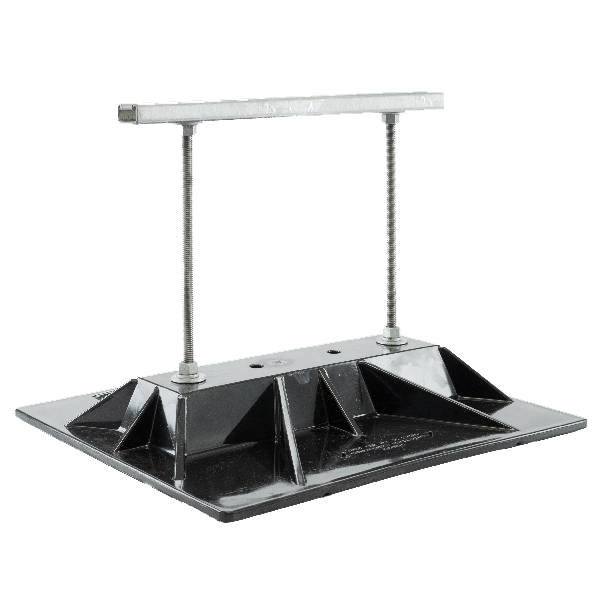

The Miro 16-Base Strut-12 Strut Style Pipe Support uses struts to support roof-mounted gas pipes, electrical conduit, solar piping or other rooftop piping. These supports are designed to handle thermal expansion and contraction of the pipes to prevent damage to you roofing membrane.  Rooftop pipes will rest on top of the strut system that is made of hot-dipped galvanized steel.  The pipe support base is made of a polycarbonate resin and all the threads and metal parts are made from stainless steel to further avoid rust and corrosion. This pipe stand has a minimum pipe clearance of 4.75″ and maximum of 13.25″.

Features

• Base Material – Polycarbonate
• Size – Deck base is 16″ by 18” and the strut is 1-5/8″ by 13/16″ and 16″ long
• Max Pipe Clearance – Minimum clearance height of 4.75″ and maximum height of 13.25″
• Max Load Weight – 578 lbs. per pipe stand
• Spacing – Miro recommends spacing to not exceed 10′ centers depending on weight load

Downloads

Specification and Drawing

If you are not finding the model you are looking for or have questions concerning bulk pricing, please reach out to us at 1 (800) 267-2308 and ask for an e-commerce representative.  If you are interested in other pipe supports we may carry, please click ‘here’.
