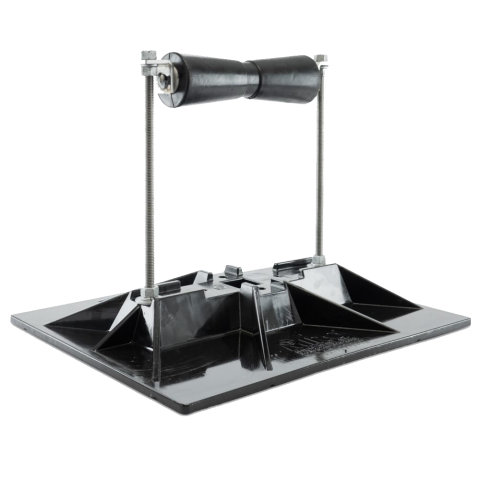

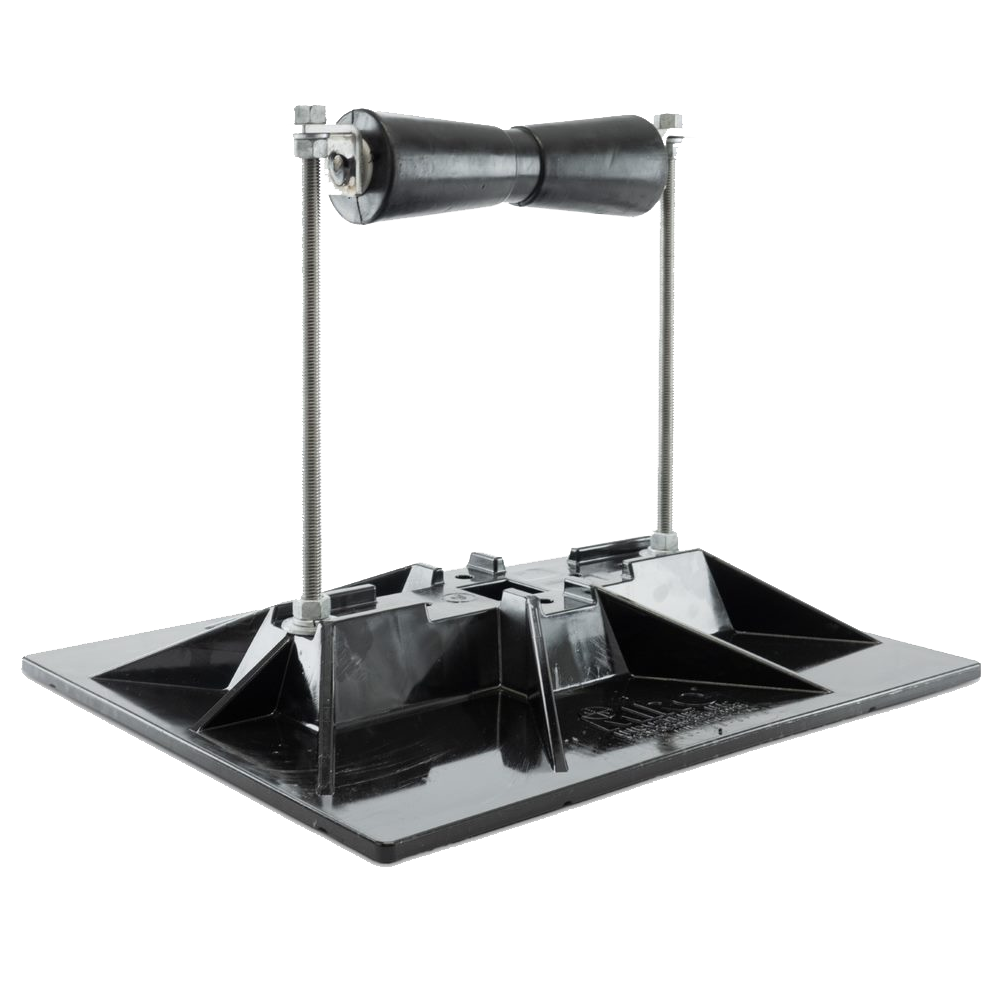

Miro 10-RAH-18 Roller Pipe Support

Miro 10-RAH-18 Roller Pipe Support

The Miro 10-RAH-18 Roller Pipe Support uses rollers and bearings to support roof-mounted gas pipes, electrical conduit, solar piping or other rooftop piping.  These supports are designed to handle thermal expansion and contraction of the pipes to prevent damage to you roofing membrane.  The pipe support and roller is made of a polycarbonate resin with the rollers being self-lubricating to avoid friction and wear.  All the threads and metal parts are made from stainless steel to avoid rust and guarantee it will last the life of the roof.  This pipe stand will accommodate up to 11.5″ inside and 12″ outside diameter pipes and has a max pipe clearance of 18″.

Features

• Base Material – Polycarbonate
• Size – Deck base is 19″ by 23“
• Max Pipe Size – 11.5″ inside and 12″ outside diameter
• Max Pipe Clearance – Minimum clearance height of 6″ and maximum clearance height of 18″
• Max Load Weight – 803 lbs. per pipe stand
• Spacing – Miro recommends spacing to not exceed 8′ centers depending on weight load

Downloads

Specification and Drawing

If you are not finding the model you are looking for or have questions concerning bulk pricing, please reach out to us at 1 (800) 267-2308 and ask for an e-commerce representative.  If you are interested in other pipe supports we may carry, please click ‘here’.
