MIRO 1.5 Pillow Bock Pipe Support

MIRO 1.5 Pillow Bock Pipe Support

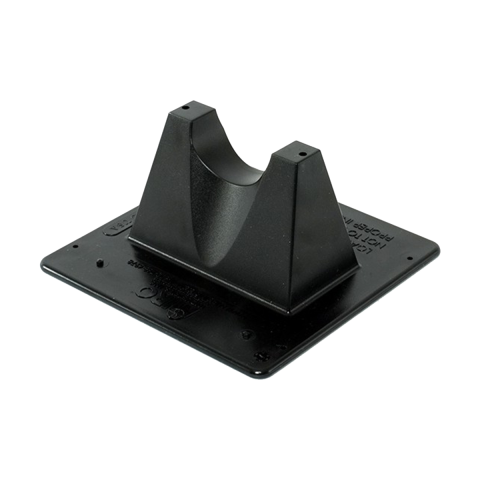

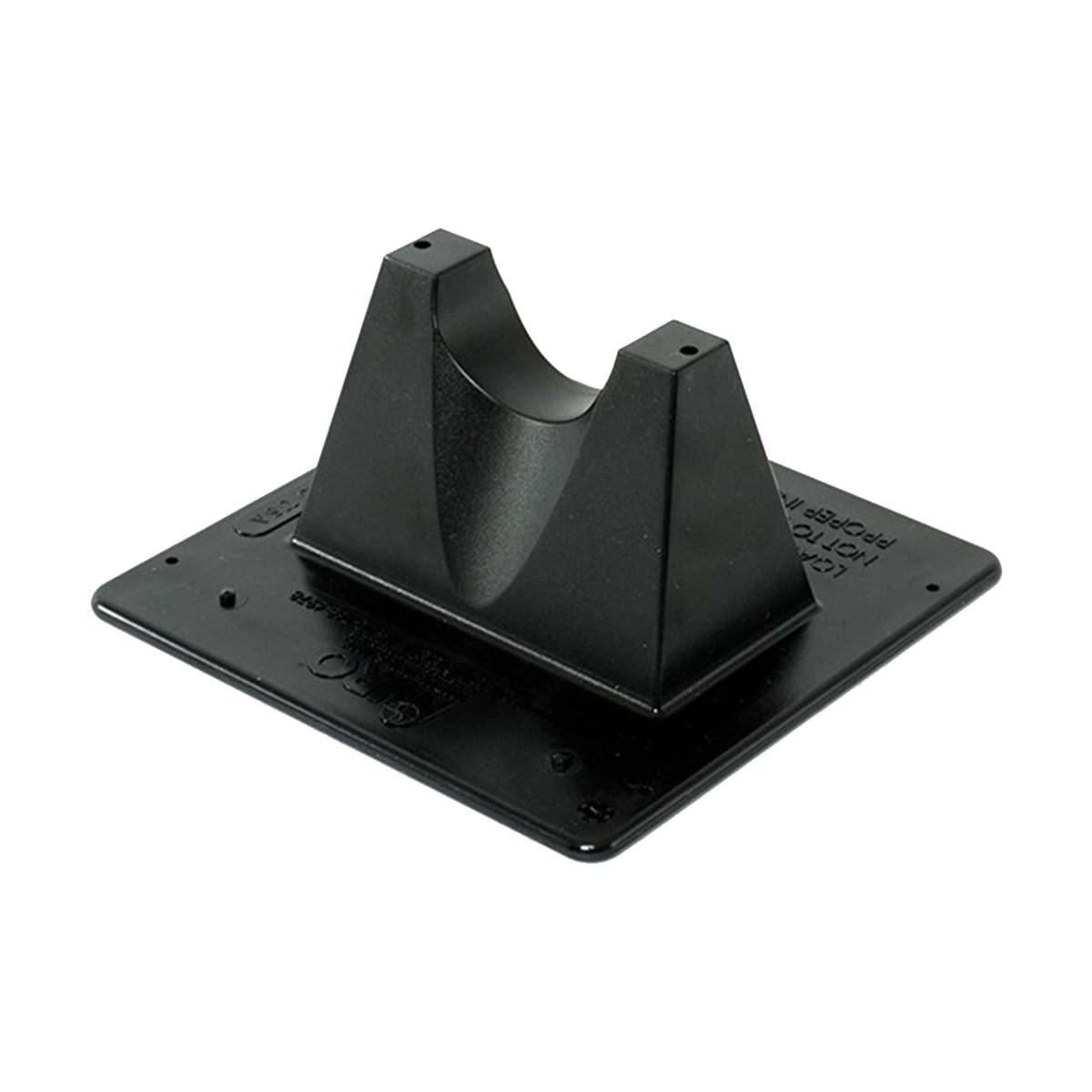

The MIRO 1.5 Pillow Bock Pipe Support is used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping on flat rooftops.  Pipes will rest in the ‘U’ shaped cradle that is made from a polycarbonate resin.  This particular model can handle up pipes up to 1.5″ inside diameter and 1.9″ outside diameter.

Features

• Base Material – Polycarbonate
• Size – Deck base is 6″ square, stacking platform is 2″ high and the top of the ‘U’ is 3″ high
• Max Pipe Size – 1-1/2″ inside diameter, 1-9/10″ outside diameter
• Max Pipe Clearance – Supported pipes will rest 2″ over the roof
• Max Load Weight – 72 lbs. per pipe stand
• Spacing – Miro recommends spacing to not exceed 10′ centers depending on weight load

Downloads

Specification and Drawing
