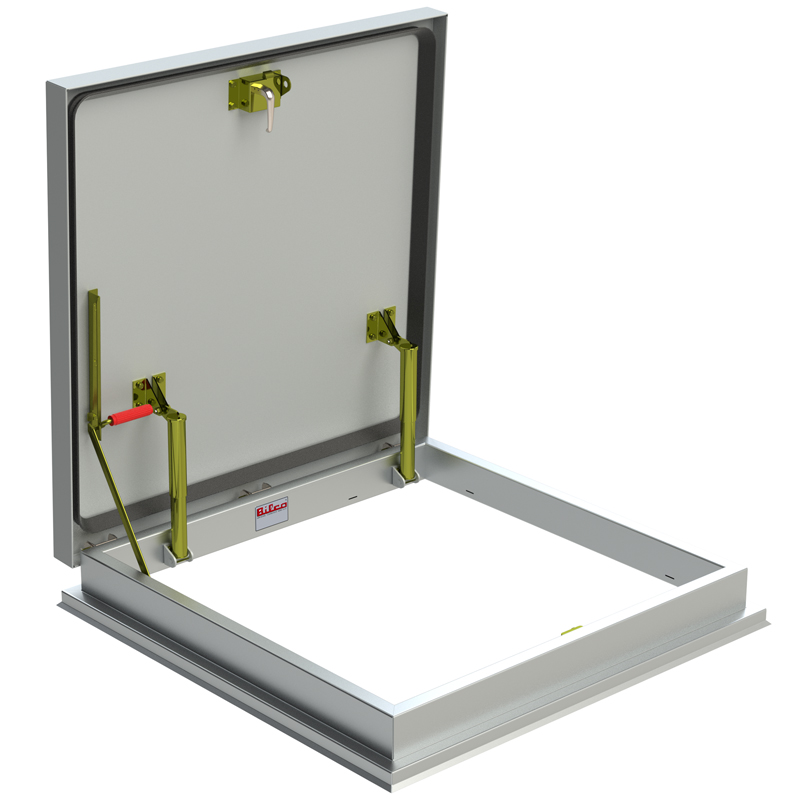

Bilco E-50VM VersaMount Hatch

Bilco E-50VM VersaMount Hatch

The Bilco E-50VM VersaMount Hatch allows you to replace a damaged roof hatch without re-roofing. The low-profile VersaMount curb features a built-in flange and apron and innovative anchor clip system to ensure a fast, secure, and weather-tight installation over an existing curb.

Features:

• For installation on an exiting curb with rough opening of 36″ x 36″
• Built-in apron simplifies installation on existing curbs and ensures water-tightness
• Engineered with compression spring operators to provide smooth, easy, one-hand operation, regardless of size
• Automatic hold-open arm locks the cover in the open position to ensure safe egress
• Overlapping cover design, full welded corners on cover and curb, EPDM rubber gasket, and fully insulated cover and curb ensure weather-tightness and energy efficiency
• Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
• Heavy gauge construction and positive latching mechanism maintain building security

Specifications:

• Cover and Frame: 11 gauge (2.3 mm) aluminum
• Cover: Brakeformed, hollow-metal design with 1″ (25 mm) concealed fiberglass insulation, 3″ (76 mm) beaded, overlapping flange, fully welded at corners, and internally reinforced for 40 psf (195 kg/m2) live load.
• Curb: 4″ (102mm) in height, breakformed hollow-metal design with 1″ (25 mm) concealed fiberglass insulation, 2-5/8″ (67 mm) mounting flange and 1-1/2″ (38 mm) apron, fully welded at corners. Stainless steel anchor clips are included.
• Gasket: Extruded EPDM rubber gasket permanently adhered to the cover.
• Hinges: Heavy-duty pintle hinges with 3/8″ (9 mm) type 316 stainless steel hinge pins.
• Latch: Slam latch with interior and exterior turn handles and padlock hasps.
• Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
• Finish: Aluminum Mill Finish
• Hardware: Engineered composite compression spring tubes and steel compression springs packed in grease. Type 316 Stainless steel hinges. All other hardware is zinc plated/chromate sealed.

**Turnaround time on the Bilco E-50VM VersaMount Hatch is 4-5 weeks**

Downloads:

Architect Drawing

Specifications

Installation Instructions
